Fuel-Fired Boilers & Equipment
Comprehensive range of fuel-fired boilers and thermal equipment for industrial applications. Custom solutions for various fuel types and combustion technologies.
Key specifications
- Capacity
- Up to 200 TPH
- Pressure Range
- 10 Kg/Cm² to 120 Kg/Cm²
- Temperature Range
- 100°C to 540°C
- Design Codes
- IBR 1950, ASME Sec I, BS 1113, TRD, ASME Sec.VIII, API
- Boiler systems delivered
- 200+
Overview & Engineering Details
Advanced combustion solutions for maximum efficiency and performance.
Product Range Covered

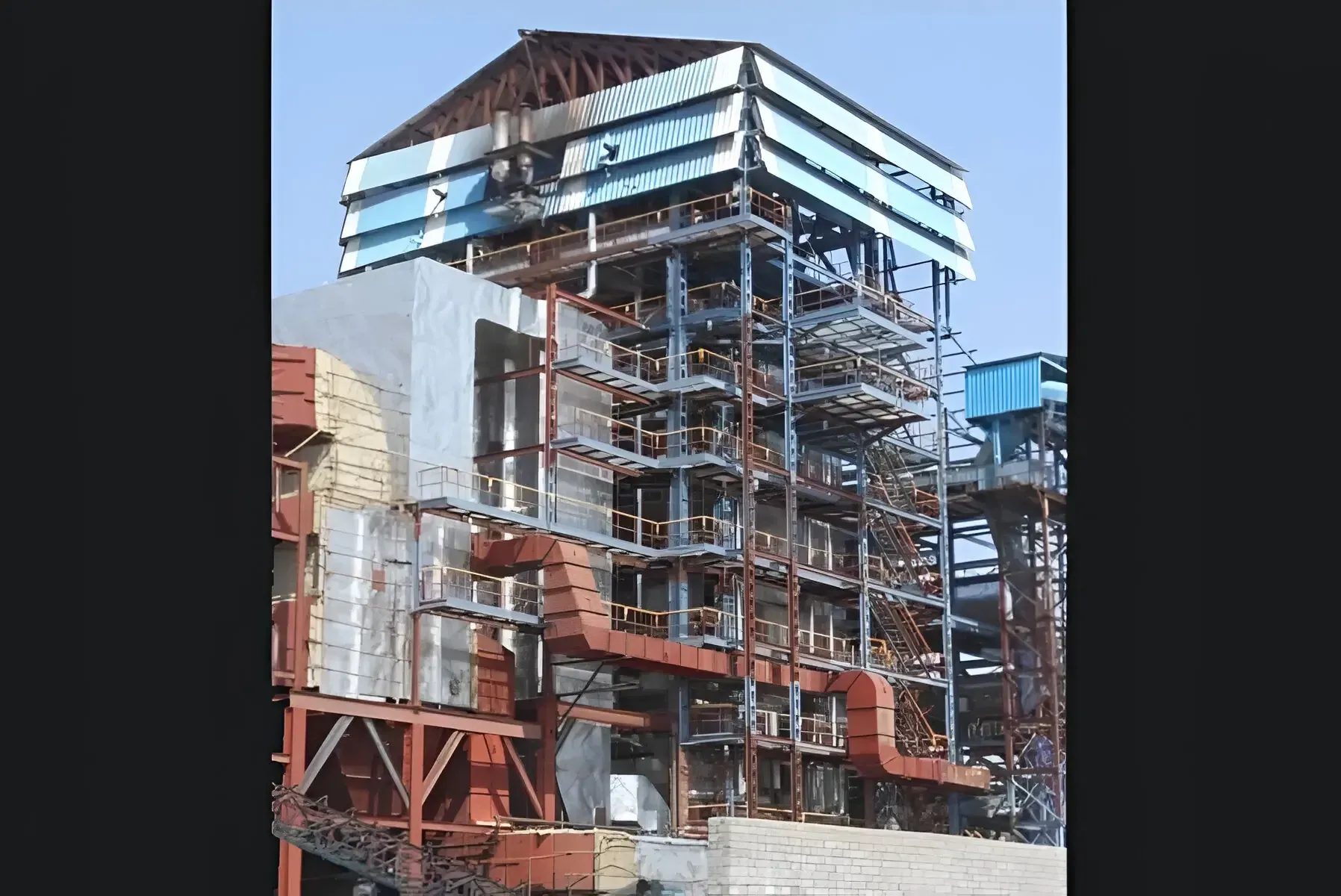

Fired Boilers
- Capacity up to 200 TPH
- Pressure Range: 10 Kg/Cm² to 120 Kg/Cm²
- Temperature Range: 100°C to 540°C
Hot Water Generators
- Upto 30 Million Kcal/hour
Thermic Fluid Heaters
- Upto 30 Million Kcal/hour
Fired Heaters
- Upto 200 Million Kcal/hour
Water Bath Heaters
- Customised as per requirement
Design Codes
- IBR 1950, ASME Sec I, BS 1113, TRD, ASME Sec.VIII, API
Design & Engineering Services
- Conceptualizing boiler/heater configuration suitable for the desired fuels & service conditions
- Thermal & hydraulic sizing of the system
- Defining specifications of fuel storage preparation & handling system, Ash handling & storage system
- Defining the Specifications of Air Pollution Control equipment
- Preparation of General Arrangement & system layout
- Pressure Parts assembly code calculations & component shop drawings
- Structural analysis, Foundation loading, component shop drawings
- Piping design, Stress analysis, Support arrangements & Isometric views
- Defining control philosophy, P&I Diagram, Cause & effect diagram, Hazop study
- Preparation of valve schedules
- Support for vendor data evaluation
- O&M manual & training
Combustion Technologies
Stoker Fired
- Fixed grate
- Dumping grate
- Traveling grate
- Pulsating grate
- Pinhole grate
- Reciprocating grate (Our proprietary design for dirty fuels)
- Vibrating grate
Fluidized Bed
- Atmospheric Fluidized Bed Combustion (AFBC)
Types of Boiler Designs
We offer a variety of boiler designs to suit different industrial requirements and space constraints, ensuring optimal performance and efficiency.
- Single-Drum
- Bi-Drum
- D-Type
- Piggy-Back
- Tail-End
- Once-Through Forced Circulation
- Thermo-Siphon
Fuel Types We Handle
Fossil Fuels
- Indian Coal
- Indonesian Coal
- Lignite
- Char
Biomass
- Bagasse
- Rice Husk
- Wood Chips
- Wood Variants
- Sawdust
- Paddy Straw
- Wheat Straw
- Mustard Husk
- Corn Cobs
- Juliflora
- Napier Grass
- Cotton Stalk
- Palm Empty Fruit Bunches (EFB)
- Coconut Shell
Waste Fuels
- MSW (Municipal Solid Waste)
- RDF (Refuse Derived Fuel) Pellets
Non-standard Fuels
- Palm fibre & Shell
- Spent Wash (Effluent from 1G Ethanol distillery)
- Lignin Syrup & Trash cake (Effluent & solid waste from 2G Ethanol distillery)
Oils
- Furnace Oil
- Diesel
- LSHS
Gases
- Carbon Monoxide
- Hydrogen
- Coke Oven Gas
- Blast Furnace Gas
- Natural Gas
Need a Custom Boiler Solution?
Our team of experts can design and engineer a boiler system tailored to your specific fuel type, capacity, and operational requirements.
